MPAndoroidChart 라이브러리를 이용한 Pie, Bar Chart 예제

안녕하세요. MPAndroidChart 라이브러리를 이용하여 안드로이드에서 Pie, Bar Chart 구현 예제 입니다.



1. MPAndoridChart

https://github.com/PhilJay/MPAndroidChart

설명과 소스 샘플코드 다운로드 가능하세요.



참고사이트 : https://javapapers.com/android/android-chart-example-app-using-mpandroidchart/



2. Project 생성

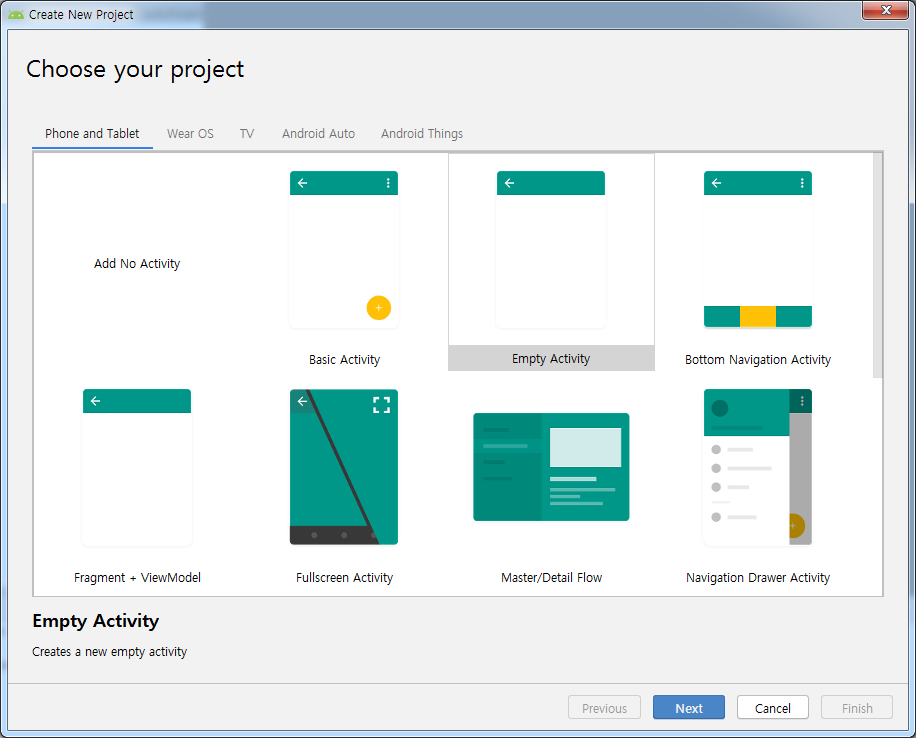

2-1. File → New → New Project → Empty Activity 선택

2-2. Project명 : ChartApplication

2-3. MPAndroidChart 라이브러리 추가

2-3-1. Project build.grale에

maven { url 'https://jitpack.io' } 추가

allprojects {
    repositories {
        google()
        jcenter()
        maven { url 'https://jitpack.io' }
    }
}

2-3-2. Module build.gradle에

implementation 'com.github.PhilJay:MPAndroidChart:v2.2.4' 추가

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'androidx.appcompat:appcompat:1.0.2'
    implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test.ext:junit:1.1.0'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.1.1'

    implementation 'com.github.PhilJay:MPAndroidChart:v2.2.4'
}

3. Activity 추가

3-1. BarChart Activity 추가

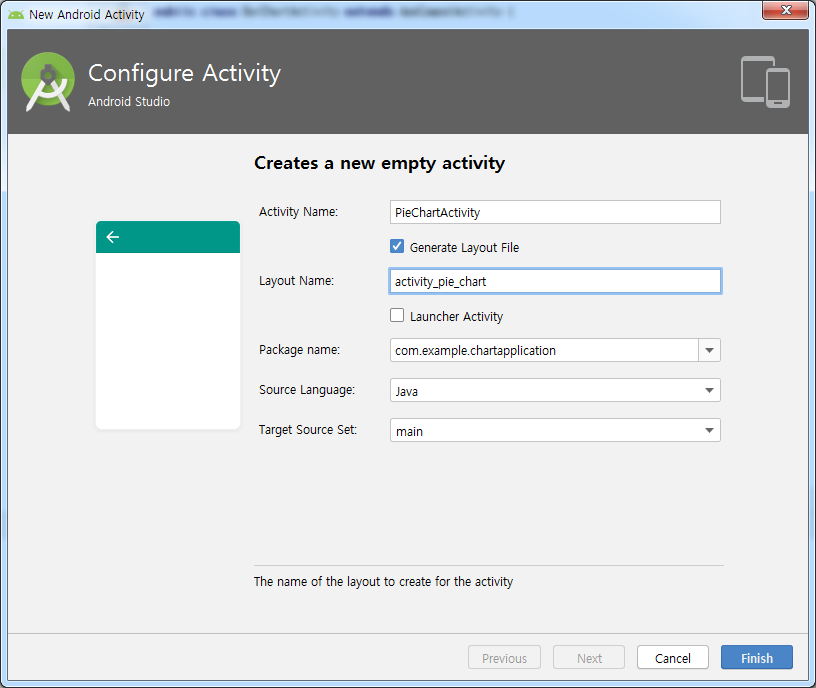

3-2. PieChart Activity 추가

4. Layout 정의

4-1. activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center"
    android:orientation="vertical"
    tools:context="com.example.chartapplication.MainActivity">

    <Button
        android:id="@+id/btnBarChart"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="10dp"
        android:text="Bar Chart Sample" />

    <Button
        android:id="@+id/btnPieChart"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="10dp"
        android:text="Pie Chart Sample" />

</LinearLayout>

4-2. activity_bar_chart.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.github.mikephil.charting.charts.BarChart
        android:id="@+id/barchart"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>

</LinearLayout>

4-3. activity_pie_chart.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <com.github.mikephil.charting.charts.PieChart
        android:id="@+id/piechart"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />
</LinearLayout>

5. JAVA 파일

5-1. MainActiviy.java

Bar Chart Sample 버튼, Pie Chart Sample 버튼 클릭시 각각의 Activity Intent로 호출

package com.example.chartapplication;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

import androidx.appcompat.app.AppCompatActivity;

import com.github.mikephil.charting.charts.BarChart;

public class MainActivity extends AppCompatActivity {
    Button btnBarChart, btnPieChart;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        BarChart barChart = (BarChart) findViewById(R.id.barchart);

        btnBarChart = findViewById(R.id.btnBarChart);
        btnPieChart = findViewById(R.id.btnPieChart);
        btnBarChart.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent I = new Intent(MainActivity.this, BarChartActivity.class);
                startActivity(I);
            }
        });
        btnPieChart.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent I = new Intent(MainActivity.this, PieChartActivity.class);
                startActivity(I);
            }
        });
    }
}



5-2. BarChartActivity.java

package com.example.chartapplication;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

import com.github.mikephil.charting.charts.BarChart;
import com.github.mikephil.charting.data.BarData;
import com.github.mikephil.charting.data.BarDataSet;
import com.github.mikephil.charting.data.BarEntry;
import com.github.mikephil.charting.interfaces.datasets.IBarDataSet;
import com.github.mikephil.charting.utils.ColorTemplate;

import java.util.ArrayList;

public class BarChartActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_bar_chart);
        BarChart chart = findViewById(R.id.barchart);

        ArrayList NoOfEmp = new ArrayList();

        NoOfEmp.add(new BarEntry(945f, 0));
        NoOfEmp.add(new BarEntry(1040f, 1));
        NoOfEmp.add(new BarEntry(1133f, 2));
        NoOfEmp.add(new BarEntry(1240f, 3));
        NoOfEmp.add(new BarEntry(1369f, 4));
        NoOfEmp.add(new BarEntry(1487f, 5));
        NoOfEmp.add(new BarEntry(1501f, 6));
        NoOfEmp.add(new BarEntry(1645f, 7));
        NoOfEmp.add(new BarEntry(1578f, 8));
        NoOfEmp.add(new BarEntry(1695f, 9));

        ArrayList year = new ArrayList();

        year.add("2008");
        year.add("2009");
        year.add("2010");
        year.add("2011");
        year.add("2012");
        year.add("2013");
        year.add("2014");
        year.add("2015");
        year.add("2016");
        year.add("2017");

        BarDataSet bardataset = new BarDataSet(NoOfEmp, "No Of Employee");
        chart.animateY(5000);
        BarData data = new BarData(year, bardataset);      // MPAndroidChart v3.X 오류 발생
        bardataset.setColors(ColorTemplate.COLORFUL_COLORS);
        chart.setData(data);
    }
}

5-3. PieChartActivity.java

package com.example.chartapplication;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

import com.github.mikephil.charting.charts.PieChart;
import com.github.mikephil.charting.data.Entry;
import com.github.mikephil.charting.data.PieData;
import com.github.mikephil.charting.data.PieDataSet;
import com.github.mikephil.charting.utils.ColorTemplate;

import java.util.ArrayList;

public class PieChartActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_pie_chart);
        PieChart pieChart = findViewById(R.id.piechart);
        ArrayList NoOfEmp = new ArrayList();

        NoOfEmp.add(new Entry(945f, 0));
        NoOfEmp.add(new Entry(1040f, 1));
        NoOfEmp.add(new Entry(1133f, 2));
        NoOfEmp.add(new Entry(1240f, 3));
        NoOfEmp.add(new Entry(1369f, 4));
        NoOfEmp.add(new Entry(1487f, 5));
        NoOfEmp.add(new Entry(1501f, 6));
        NoOfEmp.add(new Entry(1645f, 7));
        NoOfEmp.add(new Entry(1578f, 8));
        NoOfEmp.add(new Entry(1695f, 9));
        PieDataSet dataSet = new PieDataSet(NoOfEmp, "Number Of Employees");

        ArrayList year = new ArrayList();

        year.add("2008");
        year.add("2009");
        year.add("2010");
        year.add("2011");
        year.add("2012");
        year.add("2013");
        year.add("2014");
        year.add("2015");
        year.add("2016");
        year.add("2017");
        PieData data = new PieData(year, dataSet);          // MPAndroidChart v3.X 오류 발생
        pieChart.setData(data);
        dataSet.setColors(ColorTemplate.COLORFUL_COLORS);
        pieChart.animateXY(5000, 5000);
    }
}



6. 실행화면

https://youtu.be/1GJP__sQ-rk

감사합니다.
